Welcome to Simmytrified.com, where we cut through the technical jargon and make technology work for you. We’ve talked before about the unparalleled security of 24/7 CCTV Solar Power System. But what happens when you need to watch over a place where traditional power doesn’t reach? A remote construction site, a sprawling farm, a vacation cabin, a gatehouse, or even a mailbox at the end of a long driveway?

Running electrical conduit hundreds of feet is often prohibitively expensive, impractical, or just plain impossible. Does this mean you have to sacrifice security? Absolutely not.

The answer lies in harnessing the power of the sun. Enter the CCTV solar power system—the ultimate marriage of modern security and sustainable energy. This guide will demystify these off-grid security setups, breaking down how they work, what you need, and how to build a system that never blinks, day or night. Let’s simmytrify solar-powered security.

What is a CCTV Solar Power System?

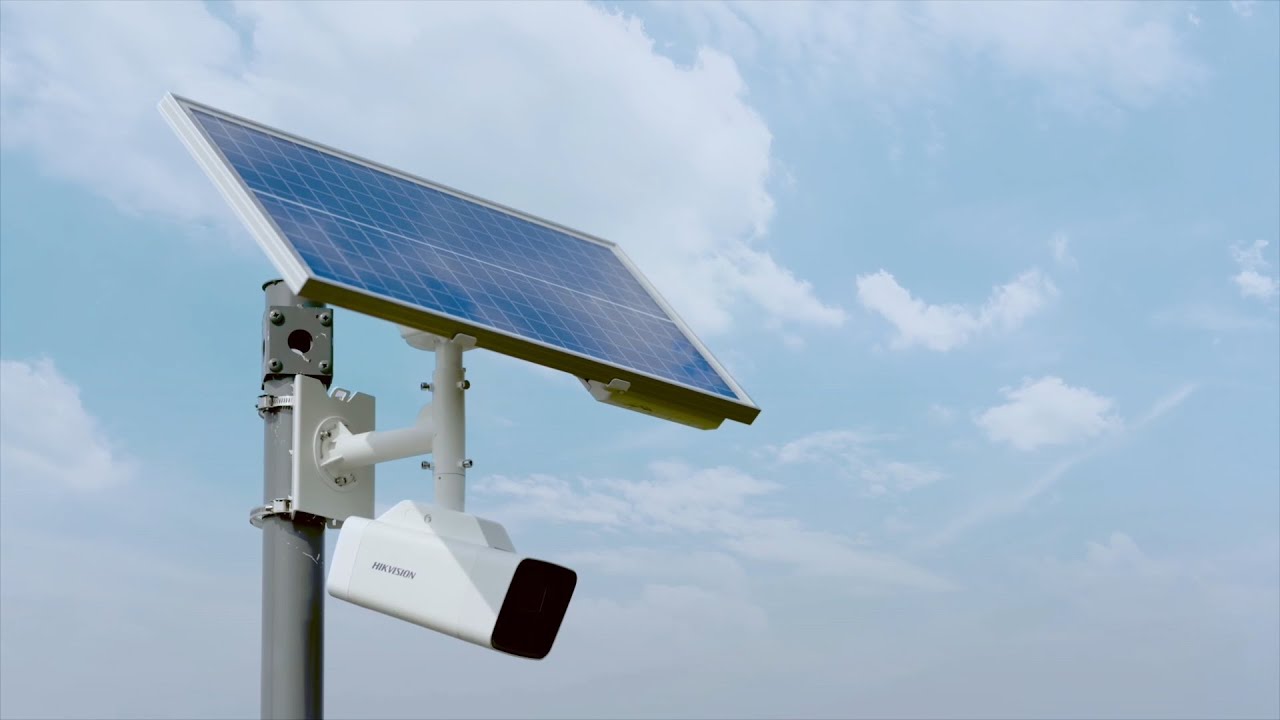

A CCTV solar power system is a self-contained, independent security setup that uses solar panels to convert sunlight into electricity to power your cameras and related equipment. It typically includes a battery storage system to ensure continuous operation through the night and during periods of poor weather, like cloudy or rainy days.

In essence, it’s a miniature, dedicated power plant designed for one purpose: to keep your security cameras running indefinitely without needing a connection to the main electrical grid. This solves the single biggest challenge of remote security: reliable power.

Why Go Solar? The Unmatched Benefits of Solar-Powered CCTV

The applications for these systems are vast and growing. Here’s why they are a game-changer:

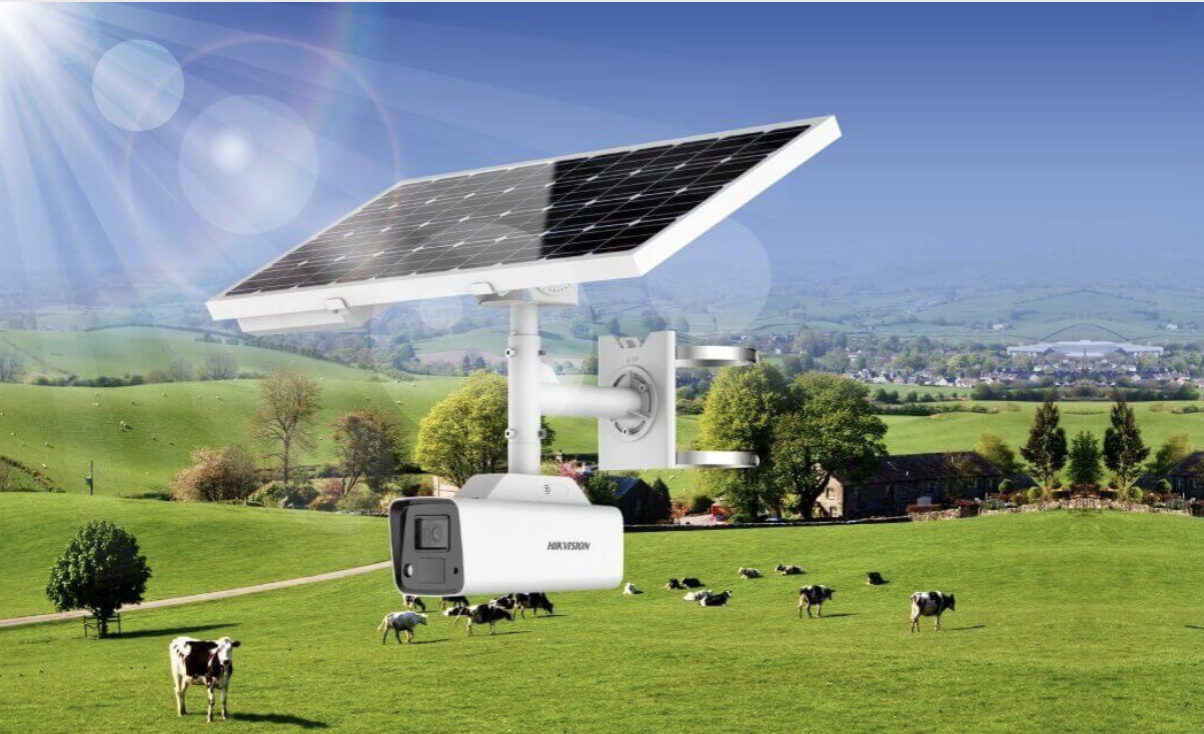

1. Total Location Independence: This is the biggest advantage. You can install a security camera virtually anywhere the sun shines—on a remote perimeter fence, in the middle of a field, on a boat dock, or at an off-grid construction site. Your security coverage is no longer limited by the proximity of a power outlet.

2. Zero Electricity Costs: Once the initial investment is made, the “fuel” for your security system is completely free. The sun doesn’t send a monthly bill. This makes solar-powered systems incredibly cost-effective in the long run, especially for permanent installations in remote areas.

3. Uninterrupted Security, Even During Blackouts: A common vulnerability of traditional wired CCTV systems is their dependence on grid power. During a blackout or if a line is cut, the system fails. A solar system with battery backup is inherently resilient. It will continue to operate normally, providing critical security precisely when it might be needed most—during storms or civil emergencies that cause power outages.

4. Eco-Friendly and Sustainable: By using clean, renewable solar energy, you are reducing your carbon footprint. It’s a green security solution that aligns with modern environmental values.

5. Reduced Installation Complexity and Cost: While the solar components add complexity, they completely eliminate the need to dig trenches for electrical lines, which can be the most expensive and labor-intensive part of a remote installation. This often makes a solar setup more affordable overall for off-grid locations.

The Core Components: Building Your Off-Grid Security Powerhouse

A functional solar-powered CCTV system is more than just a camera and a solar panel. It’s an integrated ecosystem of components that work in harmony. Understanding each part is key to designing a reliable system.

1. The CCTV Camera: The Heart of the System
Your choice of camera is critical, as its power consumption directly dictates the size of the rest of your solar system.

• Power Efficiency: Look for cameras that are designed to be energy-efficient. 12V DC cameras are ideal as they can be powered directly by your solar system’s battery, avoiding the inefficiency of power inverters.

• Type of Camera: PTZ (Pan-Tilt-Zoom) cameras are power-hungry because of their moving motors. For solar systems, fixed bullet or dome cameras are preferable due to their lower energy draw. Some are specifically marketed as “low-power” or “solar-ready.”

• Features: Opt for cameras with efficient IR (Infrared) night vision and modern compression codecs like H.265+, which reduces the amount of data (and thus energy) needed for recording and transmission.

2. The Solar Panel: The Power Generator
This is your system’s engine. Its job is to collect sunlight and convert it into electrical energy.

• Wattage (W): The size of the panel is measured in watts. The required wattage depends on your camera’s power consumption, your location’s sunlight hours, and how many days of “autonomy” (backup power) you want. A common range for a single camera system is between 20W and 100W.

• Type: Monocrystalline panels are the preferred choice for CCTV Solar Power System. They are more efficient (convert a higher percentage of sunlight into electricity) and perform better in low-light conditions compared to polycrystalline panels. This efficiency is crucial when space on a pole or bracket is limited.

3. The Battery: The Energy Reservoir
The battery stores the energy generated by the solar panel during the day for use at night and on cloudy days. This is what enables 24/7 operation.

• Capacity (Ah): Measured in Amp-hours (Ah), this tells you how much energy the battery can store. A larger capacity (e.g., 50Ah vs. 20Ah) means longer operation without sun.

• Technology:

  • Lead-Acid (Sealed): Cheaper upfront but heavier, bulkier, and have a shorter lifespan (2-5 years). They also shouldn’t be discharged below 50% regularly.

  • Lithium Iron Phosphate (LiFePO4): The highly recommended choice for solar CCTV Solar Power System. They are lighter, more compact, have a much longer lifespan (5-10+ years), can be discharged to almost 100% of their capacity, and perform better in a wider range of temperatures. Though more expensive initially, their longevity and performance make them more cost-effective over time.

4. The Solar Charge Controller: The Brain and Regulator
This is the most critical component for system health. It sits between the solar panel and the battery.

• Function: It regulates the voltage and current coming from the solar panel to the battery. It ensures the battery is charged efficiently and, most importantly, prevents overcharging (which can destroy a battery) and over-discharging (which can also cause damage).

• Type: PWM (Pulse Width Modulation) controllers are basic and cheaper. MPPT (Maximum Power Point Tracking) controllers are far more advanced and efficient. An MPPT controller can be up to 30% more efficient at harvesting energy from the panel, especially in cold weather or low-light conditions. For a professional, reliable setup, an MPPT controller is worth the investment.

5. The Power Transmission: How the Camera Connects

• Wireless (4G/LTE) Cameras: For truly remote locations with no Wi-Fi, a 4G LTE camera is the answer. It transmits footage over the cellular network, just like your smartphone. This requires a SIM card and a data plan from a cellular provider.

• Wireless (Wi-Fi) Cameras: These require a Wi-Fi signal, which might be extended from a main building using a point-to-point wireless bridge (like Ubiquiti Nanostations), which can beam a Wi-Fi signal over several miles line-of-sight.

• PoE (Power over Ethernet) Cameras: Even in a solar system, you can use PoE cameras. The solar system would power a weatherproof PoE switch, which would then provide both data and power to the cameras over a single Ethernet cable. This is excellent for multi-camera setups on a single solar station.

**6. Mounting Hardware and Enclosures:
*** Waterproof Enclosure: The battery and charge controller must be housed in a sturdy, weatherproof, and preferably lockable enclosure to protect them from the elements and tampering.

• Pole Mounts: Robust mounts and poles are needed to securely hold the solar panel, camera, and often the equipment enclosure high enough to avoid obstruction and vandalism.

How It All Works Together: The Energy Flow

Understanding the flow of energy makes the system easy to understand:

1. Energy Capture: Sunlight hits the solar panel, which generates Direct Current (DC) electricity.

2. Energy Regulation: This DC electricity flows to the solar charge controller.

3. Energy Storage & Management: The charge controller intelligently directs the power to charge the battery. It constantly monitors the battery’s voltage and state of charge.

4. Energy Distribution: The battery provides stable DC power to the CCTV camera. The camera runs directly off this power 24/7.

5. The Cycle: During the day, the solar panel ideally generates more power than the camera uses. The excess power goes to recharge the battery. At night, the camera runs solely on the energy stored in the battery. This cycle repeats daily.

Planning and Sizing Your System: A Step-by-Step Guide

Sizing your system correctly is the key to reliability. You must ensure your solar panel and battery are large enough to get through the worst weather conditions your area experiences (e.g., a string of cloudy winter days).

Here’s a simplified calculation process:

Step 1: Calculate Your Camera’s Daily Power Consumption

• Find the camera’s voltage (e.g., 12V) and its power draw in Amps (A) or Watts (W). This is in the spec sheet.

• If given in Watts, use the formula: Amps (A) = Watts (W) / Volts (V).

  • *Example: A 12V camera that uses 6W of power draws 6W / 12V = 0.5A.*

• Calculate daily Amp-hour (Ah) consumption: Amps (A) x 24 hours.

  • *Example: 0.5A x 24 hrs = 12Ah per day.*

Step 2: Determine Your Sunlight Hours (Peak Sun Hours)

• This is not just daylight hours, but the equivalent number of hours per day when sunlight intensity is at 1000W/m². You can find maps and tables online for your region. A safe average for most places is 4 peak sun hours.

Step 3: Size Your Solar Panel

• A simple formula: (Daily Ah consumption x 1.2) / Peak Sun Hours

• The 1.2 factor accounts for system inefficiencies.

  • *Example: (12Ah x 1.2) / 4 hrs = 3.6A*

• To find the panel size in Watts: Amps (A) x Solar Panel Voltage (usually 18V)

  • *Example: 3.6A x 18V = 64.8W*. So, an 80W or 100W panel would be a safe choice, providing a buffer for cloudy days.

Step 4: Size Your Battery

• You need enough capacity to power the camera through the night and several days of autonomy.

• Formula: Daily Ah consumption x Days of Autonomy

• For a LiFePO4 battery, you can use nearly 100% of its capacity. For 2 days of autonomy:

  • *Example: 12Ah x 2 days = 24Ah*. A 30Ah LiFePO4 battery would be perfect.

• For a Lead-Acid battery (only 50% usable capacity): *Example: (12Ah x 2 days) / 0.5 = 48Ah*. You would need a 50Ah lead-acid battery.

DIY vs. All-in-One Kits vs. Professional Installation

• DIY (Buying Components Separately): Offers the most flexibility and potential cost savings for those who are technically inclined. You can hand-pick each component for optimal performance. Requires more research and comfort with basic electrical connections.

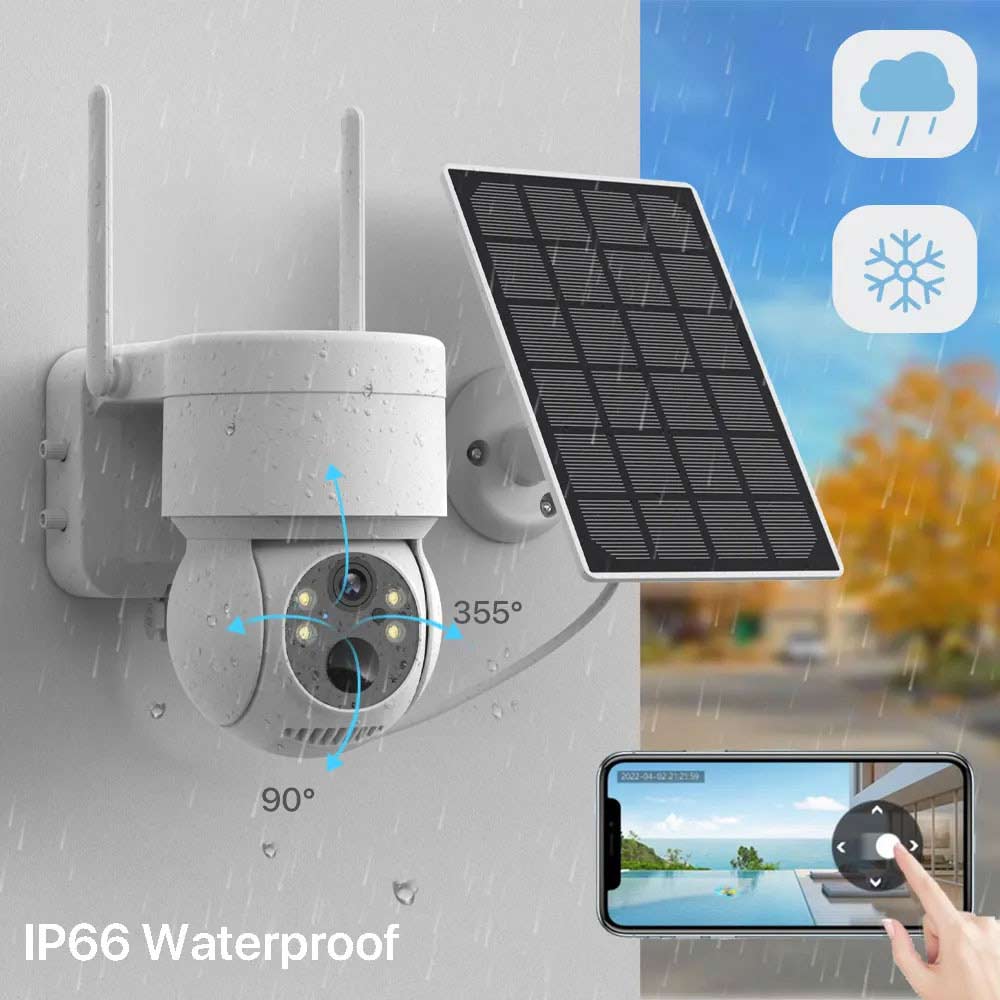

• All-in-One Solar Camera Kits: These are convenient packages where the solar panel, camera, and often a battery are bundled together in one design. They are easy to install but often compromise on battery size, panel efficiency, and camera quality. Best for simple, single-camera applications with less critical power needs.

• Professional Installation: Recommended for complex, multi-camera systems or for business-critical applications. Professionals can correctly size the system, ensure weatherproof connections, and provide warranties on the installation.

Maintenance and Best Practices

A well-designed solar CCTV system is largely hands-off, but a little maintenance ensures longevity.

• Panel Cleaning: Wipe the solar panel clean of dust, pollen, snow, and bird droppings every few months to maintain maximum efficiency.

• Visual Inspection: Periodically check all cables, mounts, and the equipment enclosure for signs of wear, weather damage, or animal interference.

• Battery Check: While LiFePO4 batteries are maintenance-free, it’s good to check system diagnostics if your charge controller provides them.

• Firmware Updates: Keep your camera’s firmware updated for security and performance improvements, if it’s connected to a network.

Conclusion: Security Without Limits

A CCTV solar power system is the ultimate solution for truly boundary-free security. It liberates you from the constraints of the power grid, allowing you to protect assets anywhere on the planet. While it requires careful planning and an understanding of basic solar principles, the result is a robust, sustainable, and highly reliable security system that pays for itself in peace of mind and eliminated installation costs.

At Simmytrified.com, we believe in empowering you with knowledge. Harnessing the sun for security is no longer a futuristic concept—it’s a practical, accessible, and powerful tool available today.

Ready to explore solar-powered security for your remote location? Have questions about sizing your system? Leave a comment below—we’re here to help simmytrify it for you!
